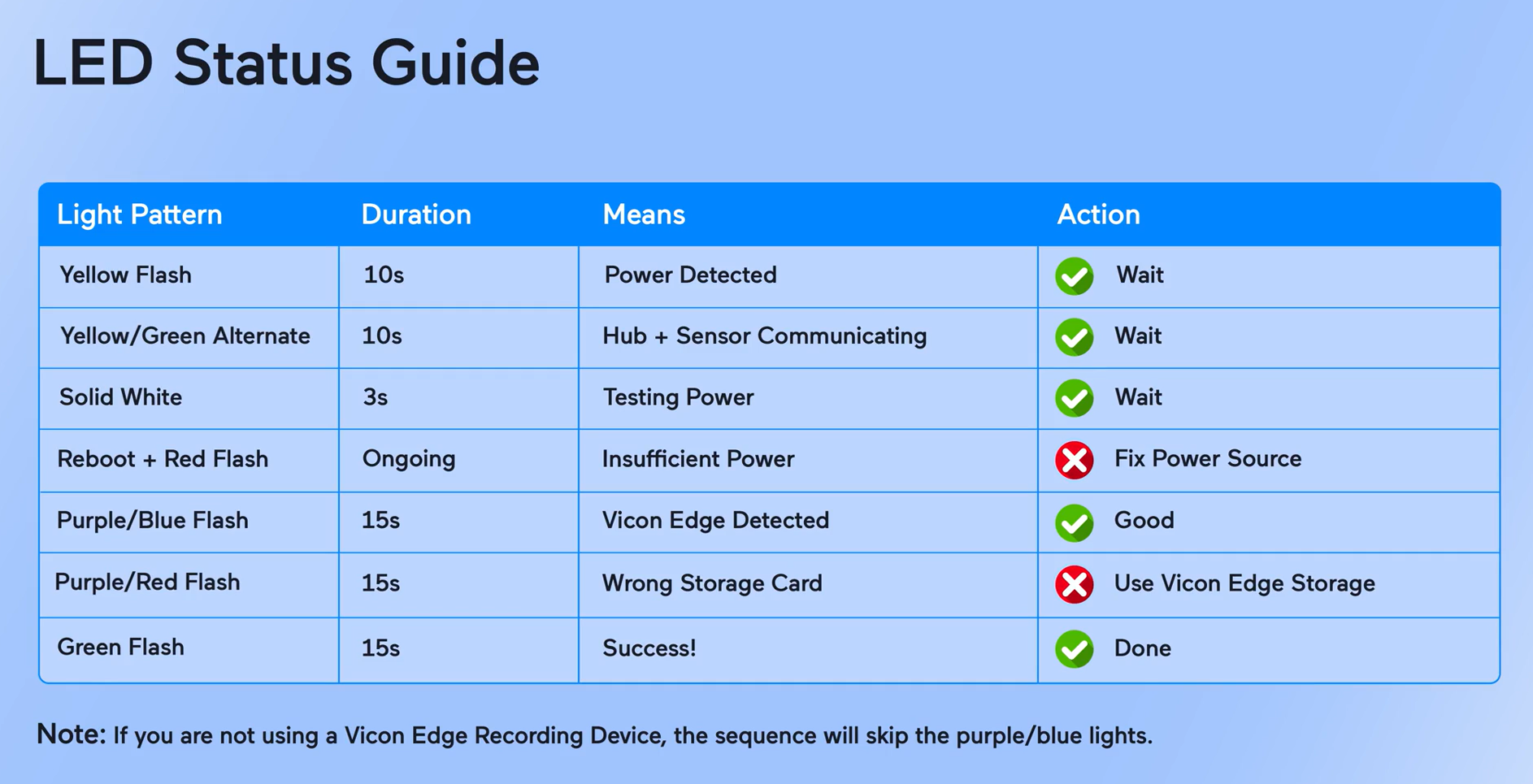

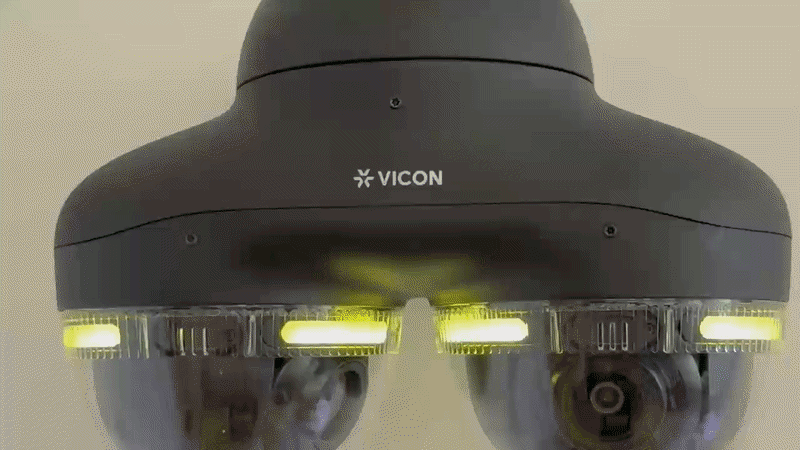

Step 1: Yellow Flashing
Power detected. Device is starting up.
Step 2: Yellow/Green Alternating
Hub is communicating with the sensor.
Key signals:
- Continued flashing yellow: Communication issue detected
Step 3: Solid White
After about 30 seconds, it should turn solid white. This means power is being tested.
Key signals:
- Rebooting: if not enough power is detected, it will reboot, go through steps 1-2, then flash red.

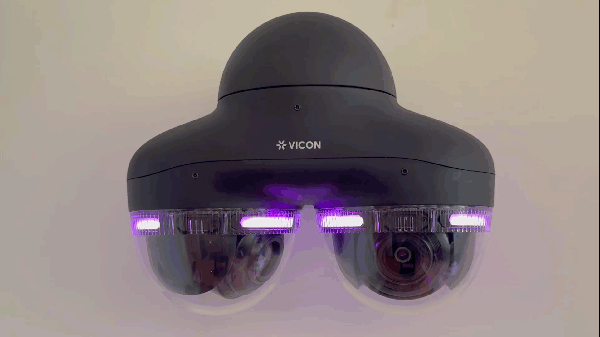

Step 4: Purple/Blue
This step is looking for the Edge Storage Card.
Key signals:
- Purple/Blue: a Vicon Edge Storage Device detected
- Purple/Red: a non-supported SD Card detected
- No purple: no Edge Storage detected

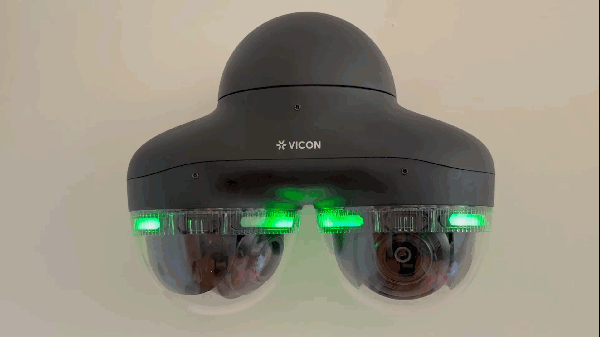

Step 5: Flashing/Rotating Green
Success!
